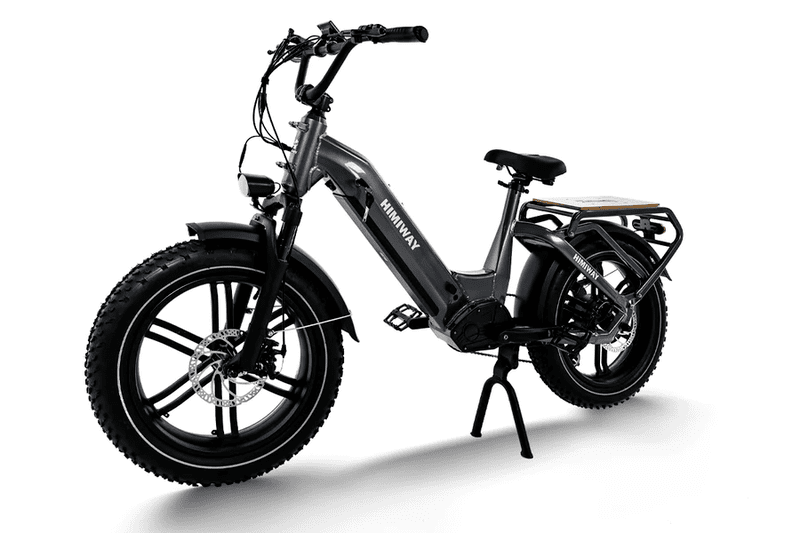

Himiway Big Dog
Specification

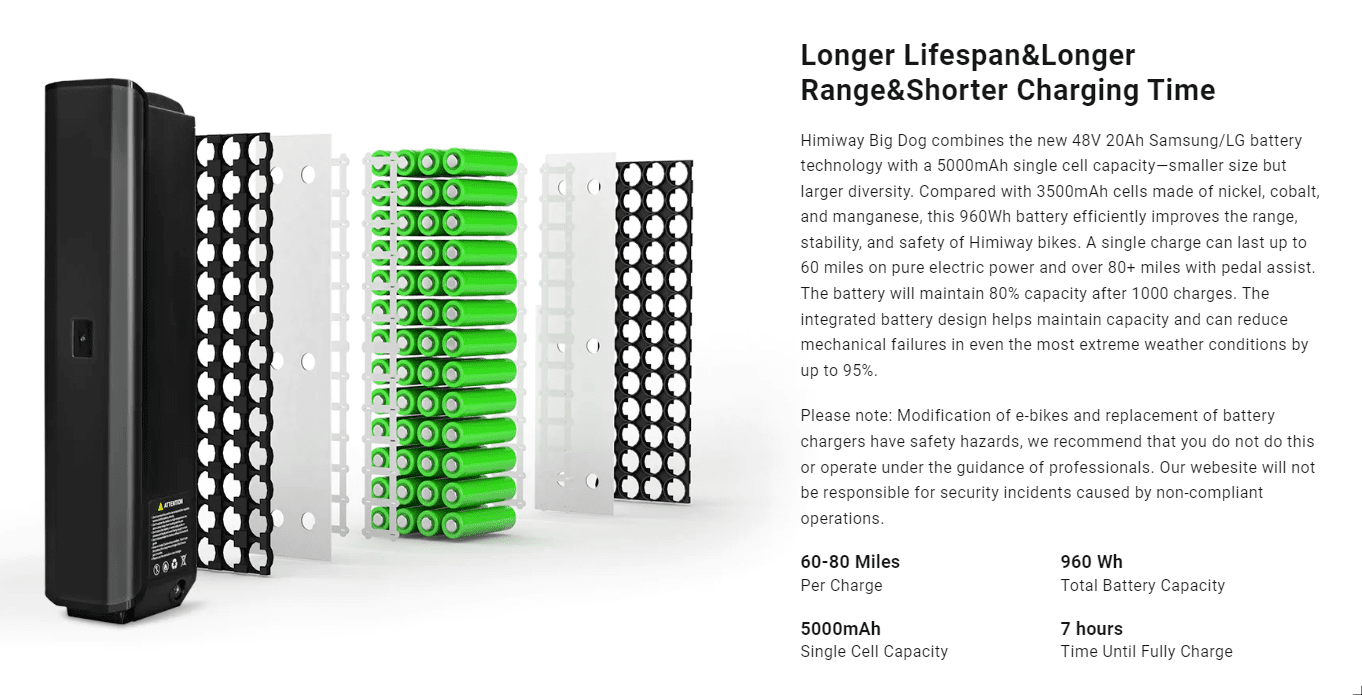

Battery 48V 20Ah Samsung/LG lithium battery
Range 60–80miles
Hub Motor 750W brushless gear motor
Total Payload Capacity 400 lbs
Recommended Rider Heights5′0″ ~ 6′0″
Charger US standard 3.0 A smart charger
Controller 48V/22A
Display LCD display with USB charging
Weight 79 lb.
Pedal Assist Intelligent 0~5 level pedal assist
Components
Tires 20″ x 4″ Kenda fat tires
Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
Rear Light Integrated tail light
Freewheel Shimano 7 speed gear shift system
Brake180mm mechanical disc brakes
Chain KMC chain
Stem Promax MA-400 SSABK
Crank 170mm forged alloy
Gearing Shimano- 14-28T BROWN/BK
Front Fork Alloy front suspension fork with lockout and adjustment
Throttle Half twist throttle
Pedal Alloy pedal with reflectors
Bike Frame 6061 Aluminum frame
Front Light 48V LED light
Saddle SR saddle
Seat Post 30.9 x 300 mm Alloy Seatpost
Kickstand Heavy-duty aluminum
Spokes One wheel
